Vertical pole mount
Brand: Hikvision
In Stock
Model: DS-1275ZJ-S-SUS, SKU: 02382
Description

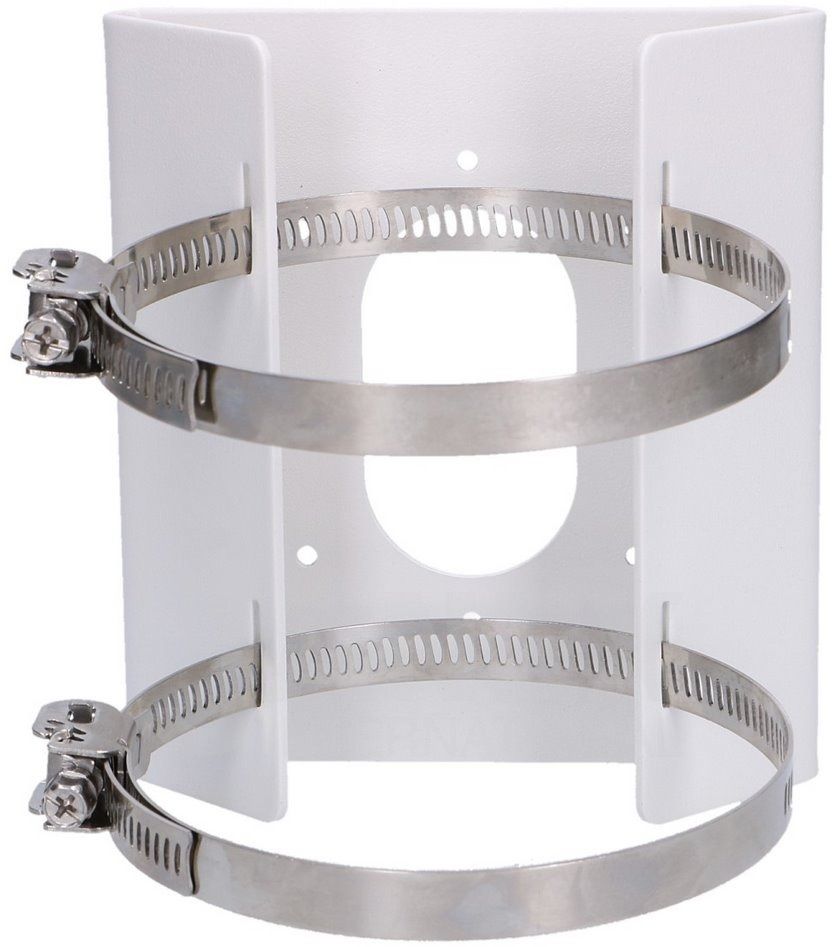

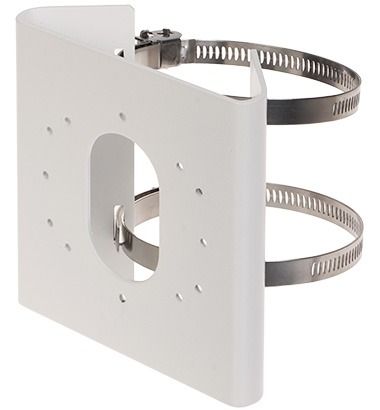

a heavy-duty vertical pole mounting bracket manufactured by Hikvision. Its primary function is to adapt a standard camera wall mount or junction box, which is typically designed for flat wall installation, to a cylindrical vertical structure (like a light pole, street pole, or column).
MVR 470
Overview
Key features:
Material: Stainless Steel (SUS) construction for maximum corrosion resistance and outdoor durability.
Application: Converts a standard camera wall mount to fit securely on a vertical cylindrical pole (e.g., street lights, columns).
Compatibility: Designed specifically for use with Hikvision wall mount brackets and junction boxes, acting as an intermediate adapter.
Adjustable Diameter: Supports installation on poles with diameters ranging from 67 mm to 127 mm (2.64" to 5").
Installation Method: Secured using adjustable stainless steel straps (banding), requiring no drilling into the pole.
Load Capacity: Supports a substantial load of up to 10 kg (22 lb), accommodating most camera types, including larger bullet and dome cameras.
Design: Saddle-style bracket that conforms to the pole's curve while providing a flat mounting surface for the camera's primary bracket.
