Outdoor Wifi Slim Smart Lock with 5-Way Unlocking (Fingerprint + Pincode + Mifare Access Card + Mobile App + Mechanical Key) SL01-N230N

Brand: Others

In Stock

Model: SL01-N230N, SKU: 02248

Description

SL01-N230N is a sleek Wi-Fi smart lock with 5-way unlocking for sliding or swing doors. Perfect for semi-outdoor use, it offers remote control, fingerprint security, and visitor code sharing via the NGTeco Home app.

MVR 3400

Overview

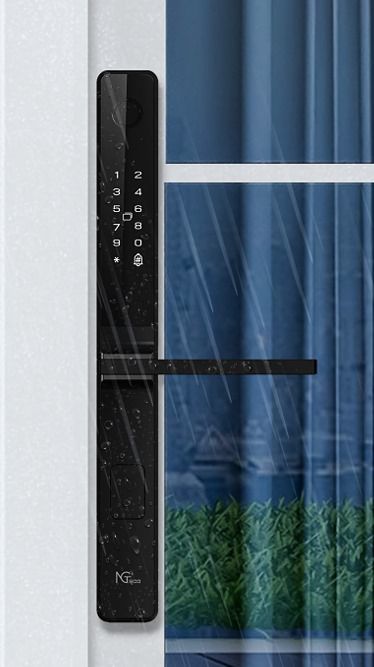

Slim Fingerprint Semi-outdoor Wi-Fi Door Lock

The SL01-N230N is a smart lock with narrow frame design, it can be used for various types of doors, such as aluminium and wooden sliding doors and swing doors. It uses a special design and can be used in a variety of semi-outdoor scenarios. It can be managed with the NGTeco Home app through WiFi communication, and can remotely control and view log history, share the temporary visitor passcode, ect.

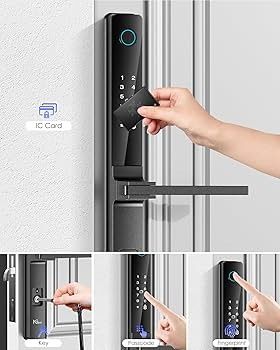

  • 5-in-1 Unlocking Options: Secure your doors with fingerprint ID, passcode, Mifare card, mobile app (Wi-Fi), or mechanical key – tailored for every user preference.
  • Slim & Stylish Design: Built for modern aesthetics with a narrow frame ideal for aluminum and wooden sliding/swing doors.
  • Semi-Outdoor Ready: Engineered for durability in semi-exposed environments like patios, balconies, or storefronts.
  • Smart Wi-Fi Control: Instantly manage access, share temporary passcodes, and monitor unlock logs remotely via the NGTeco Home app.
  • Built-in Doorbell & Alerts: Receive real-time error or tamper notifications and respond to doorbell calls through your smartphone.
  • Admin Lockout Mode: Restrict full control to administrators only for maximum security.
  • Emergency Power Ready: Equipped with a USB Type-C port to ensure access during power failures.

Specification

Specifications

Material

  • Housing Material: Aluminium Alloy
  • Color Options: Black

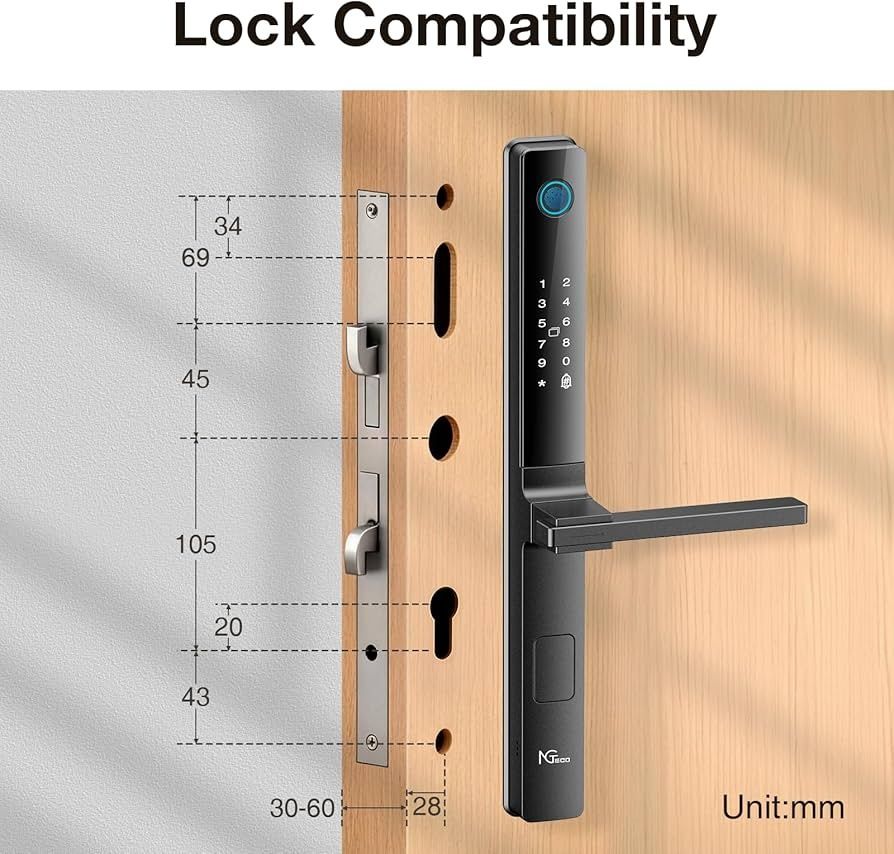

Mortise Lock

  • Type: 2885 mortise with hook
  • Backset: 28 mm
  • Axe Distance: 85 mm
  • Square Spindle: 7.8 mm
  • Faceplate (H × W): 22 × 270 mm (squared standard)

Technical

  • Unlocking Methods: Fingerprint, Card, Passcode (6 to 10 digits), NGTeco Home App, Mechanical Key
  • Capacity: 200 users (combined Fingerprint, Passcode, and Card)
  • Mobile App Records: Last 6 months
  • Fingerprint Sensor: Capacitive
  • Card Reader: IC Card @13.56 MHz
  • NFC: Supported
  • Audio Prompt Languages: English, Spanish, Portuguese, Vietnamese, Thai, Russian, Arabic, Indonesian
  • Wireless Communication:
    • Wi-Fi (IEEE 802.11b/g/n) @ 2.4 GHz
    • BLE 5.0 (only for network configuration)
  • Emergency Power: USB Type-C Interface, DC 5V
  • Power Supply: 4× AAA Alkaline Batteries
  • Battery Life: Approx. 6 months (based on 10 accesses/day with Wi-Fi active)
  • Supported App: NGTeco Home

Door Compatibility

  • Door Type: Swing Door, Sliding Door
  • Door Thickness: 30 to 60 mm
  • Opening Direction: All Directions

General

  • Product Dimensions (H × W × T):
    • Front: 358 × 143.1 × 66 mm
    • Back: 358 × 143.1 × 66 mm
  • Operating Temperature: -20°C to 55°C (-4°F to 131°F)
  • Operating Humidity: 20% to 90% RH (Non-condensing)
  • Certifications: CE

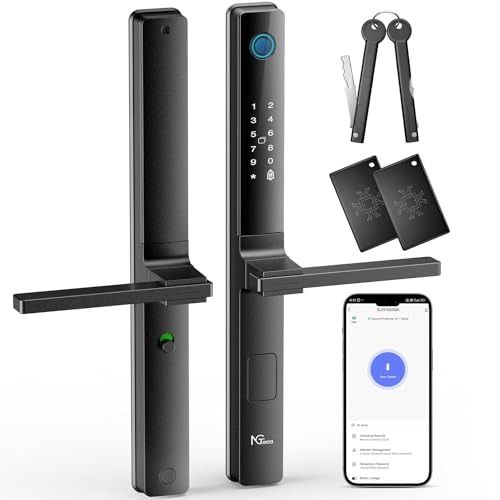

Package Contents

  • Exterior Assembly
  • Interior Assembly
  • Mortise Kit
  • Mechanical Key ×2
  • Studs & Screws Kit
  • IC Card ×2
  • Installation Template
  • Installation Guide & User Manual
