Product information

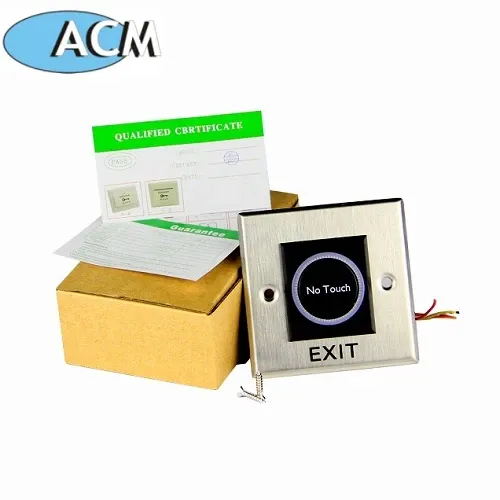

NO Touch Infrared Sensor Exit Button ACM-K2B

Brand: ACM

In Stock

Model: ACM-K2B , SKU: 01143

Description

The ACM-K2B is a professional No-Touch Infrared Sensor Exit Button widely utilized in automated door release and electronic access control systems. It allows users to open a door safely by simply waving a hand in front of the sensor, reducing the transmission of germs.

MVR 250

Overview

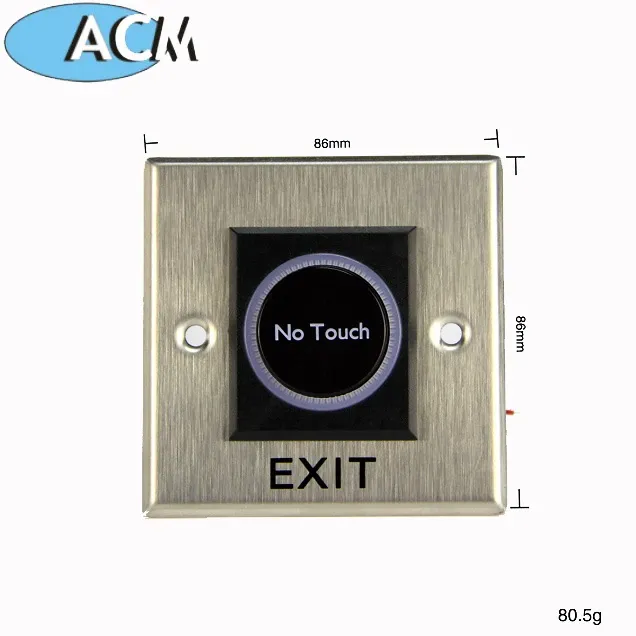

Dimensions 86Lx86Wx26H(mm)

Input DC12V-24V

Contact Rating 1A@36VDC

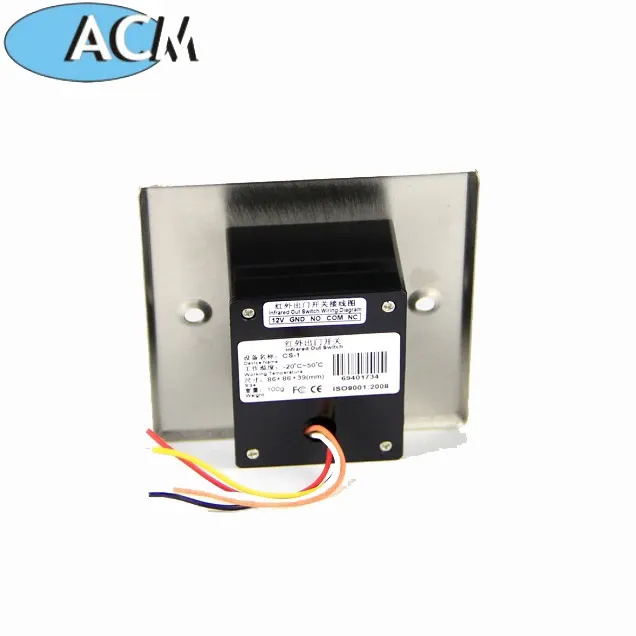

Output Contact NO/NC/COM

Mechanical Life 500000 tests

Suitable for Door Hollow Door

Operating temp -20℃～+55℃(14-131F)

Suitable Humidity 0-95% (relative humidity)

Detection range 0.1~10cm

Unit Weight 0.11KG

Standard Package 100PCS/carton

Carton Weight 11KG

Carton Size 514333(cm)

Specification
