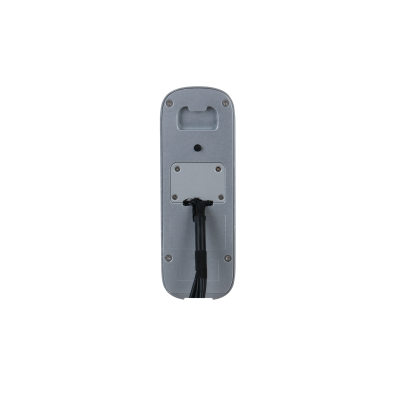

Product Images


Product information

Fingerprint Access Control Standalone Terminal , ASI1202M

Brand: Dahua

In Stock

Model: ASI1202M, SKU: 01617

Description

The ASI1202M is a versatile access control interface module designed to provide connectivity and control within access control systems. It features relay outputs for managing electronic locks and alarms, as well as input ports for connecting sensors and buttons. With support for various communication protocols and a durable design, it is well-suited for use in commercial, industrial, and security applications where reliable access management is essential.

MVR 2900

Overview

  • Material: Zinc alloy plate
  • Support card unlock, fingerprint unlock, and card&fingerprint unlock
  • Card reading frequency is 13.56MHZ; card reading distance is 1cm–3cm
  • Support both RS-485 protocol and Wiegand protocol
  • IP65, IK10
  • Fingerprint Capacity: 3, 000
  • Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and illegal card exceeding time alarm
  • Support guest card, patrol card, VIP card, general user card, and card for the disabled

Specification

System

Main Processor | Embedded processor
Network Protocol | IPv4; TCP
OSDP Protocol | Yes
SDK and API | Yes

Basic

Appearance | All-in-one
Buzzer | Yes
Casing | Zinc alloy

Function

Unlock Mode | Fingerprint/Card unlock
Card Reading Type | IC card
Period List | 128
Holiday Period | 128
Network Update | Yes
First Card Unlock | Yes
Remote Verification | Yes
Blocklist/Allowlist | Yes
Peripheral Card Reader | 1 RS-485, 1 Wiegand
Multiple Authentication | Support card/fingerprint unlock
Real-Time Surveillance | Yes
Group Combination | Yes
Register | Yes

Performance

Card Reading Distance | 1cm–3cm
Fingerprint Sensor Type | Optical
Fingerprint Verification | 1:N
Fingerprint Comparison Time | ≤1.5s
Fingerprint Recognition Time | ≤0.5s

User

User (Card) Type | General user/VIP/patrol user/guest/blocklist user/special user
Capacity
User Capacity | 30,000
Fingerprint Capacity | 3,000
Card Capacity | 30,000
Record Capacity | 150,000

Port

RS-485 | 1
Wiegand | 1 (input and output ports are the same)
USB | 1 USB2.0 port
Network | 1 RJ-45, 10Mbps/100Mbps self-adaptive
Alarm Input | 1 (digital quantity)
Alarm Output | 1 (relay)
Alarm Linkage | Yes
Exit Button | 1
Door Status Detection | 1
Lock Control | 1, off by default
Bolt Detection | 1, relay

Alarm

Anti-Passback | Yes
Tamper Alarm | Yes
Duress Alarm | Yes
Door Sensor Timeout | Yes
Intrusion | Yes
Illegal Card Exceeding Threshold | Yes
Duress Fingerprint | Yes

General

Power Adapter | Optional
Power Supply | 12V DC 1A
Protection Grade | IP65 (Apply silica gel to gaps, for details, see the quick start guide.) IK10
Power Consumption | ≤1.8W (standby), ≤3W (working)
Product Dimensions | 54.8mm×159.2mm×35.0mm (2.16"×6.27"×1.38")
Box Dimensions | 206mm×106mm×97mm (8.11""×4.17""×3.82"") (Product box) 553mm×428mm×220mm (21.77""×16.85""×8.66"") (Protective box)
Operating Temperature | -30°C to +50°C (-22°F to +122°F)
Operating Humidity | 5%RH–95%RH (non-condensing)
Operating Altitude | 0m–1300m (0ft–4265.09ft)
Operating Environment | Outdoor
Net weight | 0.7kg (1.54lb)
Gross Weight | 0.79kg (1.74lb)
Accessory | Bracket
Installation | Surface mount
Certifications | CE FCC
