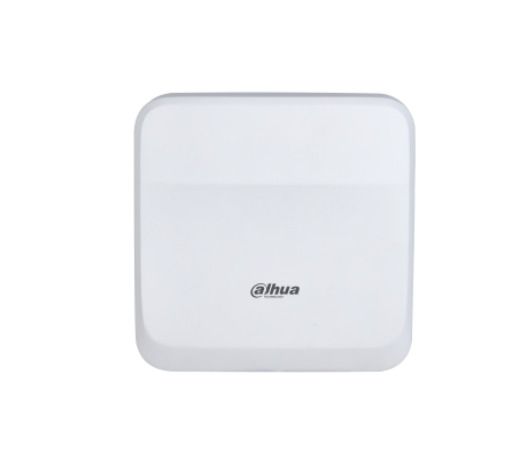

Overview – ECC02 Elevator Controller

The ECC02 is a robust and intelligent elevator controller built with flame-retardant PC and ABS materials and rated IK06 for durability. It supports both platform mode and standalone mode, allowing flexible user management with thousands of users, cards, fingerprints, and passwords. The controller communicates via TCP/IP, PoE, Wiegand, and RS-485, and supports up to 128 floors with multiple elevator modules. Advanced alarm features, watchdog protection, and the ability to retain data while powered off make it reliable and secure. Configuration and management can be done through DSS Pro or the controller's webpage, providing both convenience and control for modern access management systems.

Key Features:

• Flame-retardant PC & ABS construction, IK06 rated
• Supports TCP/IP and standard PoE
• Wiegand 34 & RS-485 reader protocols
• Platform mode: up to 30,000 users, 30,000 cards/QR codes, 10,000 fingerprints, 30,000 passwords, 300,000 records
• Standalone mode: up to 10,000 users, cards, fingerprints, passwords, 300,000 records
• Supports up to 128 floors and multiple elevator call/control modules
• Multiple alarms: duress, tamper, blocklist, offline
• Retains stored data even when powered off
• Configurable via DSS Pro or web interface
• Watchdog protection ensures system stability
