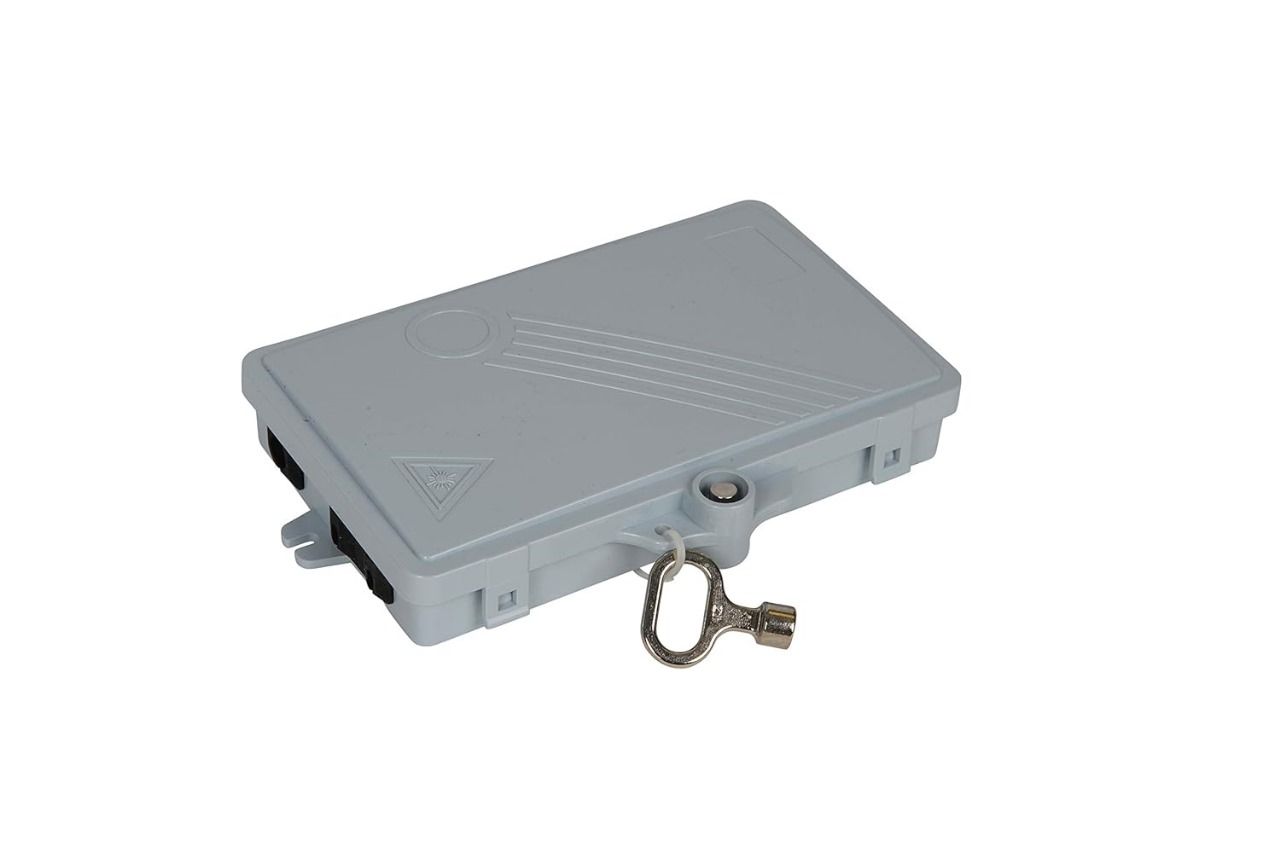

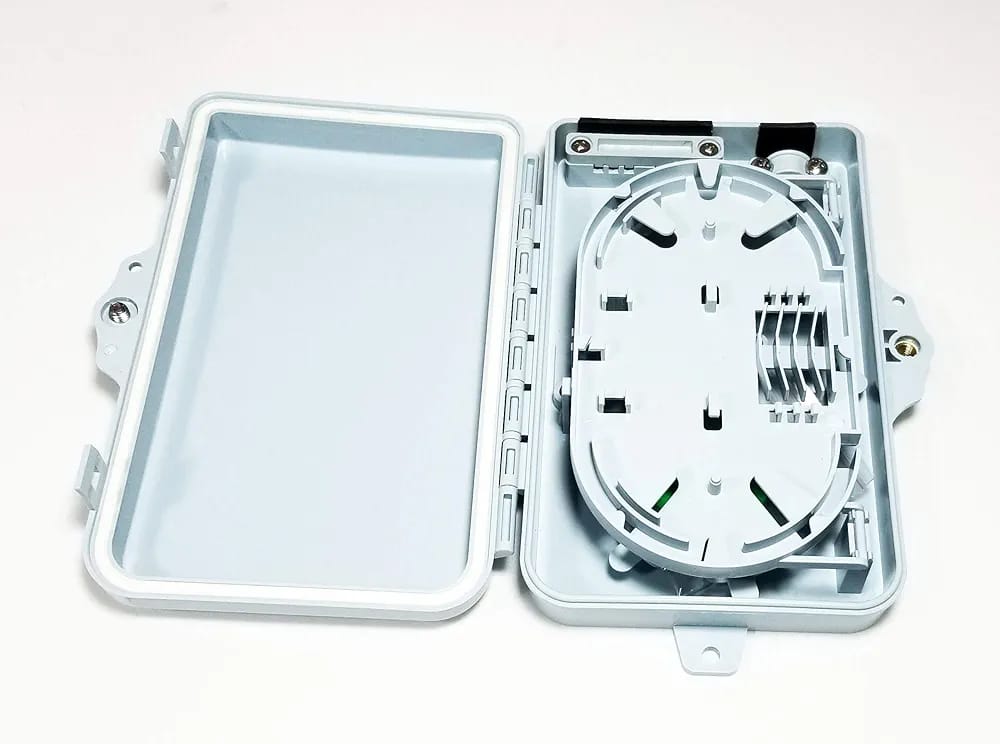

4 Core Fiber Optic Distribution outdoor box, Sun Telecom
Brand: Suntelecom
In Stock
Model: SUN-ODN-JZ4-GW, SKU: 02372
Description
Gray; Suitable for 1 piece of 1x4 blockless type PLC splitter; With the adaptor panel for max. 4 pieces of SC or duplex LC (SC type); Adaptors and PLC splitters NOT included, Dimension (mm): 204(L)×130(W)×40(H), Wall mounting accessories included
MVR 150
Overview
Key features:
Capacity: Designed to support a maximum of 4 fiber cores and accommodate 4 SC simplex adapters (or Duplex LC adapters).
Application: Specifically intended for use in Outdoor environments as a termination point in Fiber-to-the-Home (FTTH) networks.
Installation: Supports Wall mounting and potentially Pole mounting, fitting its role as a Customer Terminal (CT) box.
Protection Rating: Has an IP65 rating, which confirms it is dust-tight and protected against powerful jets of water.
Durability: The enclosure is constructed from a robust material like PC+ABS engineering plastic to be moisture-proof, water-proof, and anti-aging for long-term outdoor deployment.
Function: Serves as the junction point for fiber splicing, termination, and distribution between the feeder/drop cable and the end-user's patch cord.
Connector Support: The design allows for the use of fast connectors (field-installable connectors) directly to pigtails, simplifying field installation.
Splitter Accommodation: As a low-core box, it is primarily for termination, but may include minimal internal space for a very small splitter (e.g., a 1x2 PLC splitter) if required.
Cable Entry: Typically provides one or two inlet/outlet ports to manage the entry of the incoming cable and the four drop cables leaving to the customer premises.
