Key features:

Capacity: 24 Cores (fibers) maximum, achieved using 12 slots for Duplex LC adapters.

Rack Compatibility: 19-inch standard structure for mounting in server cabinets and racks.

Height: 1U (45mm high), optimizing space efficiency in the rack.

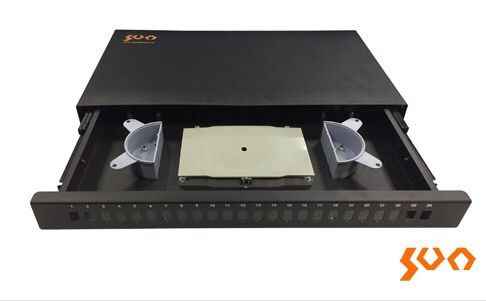

Design: Sliding design (drawer type), which allows the inner tray to be pulled forward for easy access to the splice tray, pigtails, and cable management without disturbing the connected patch cords in the front.

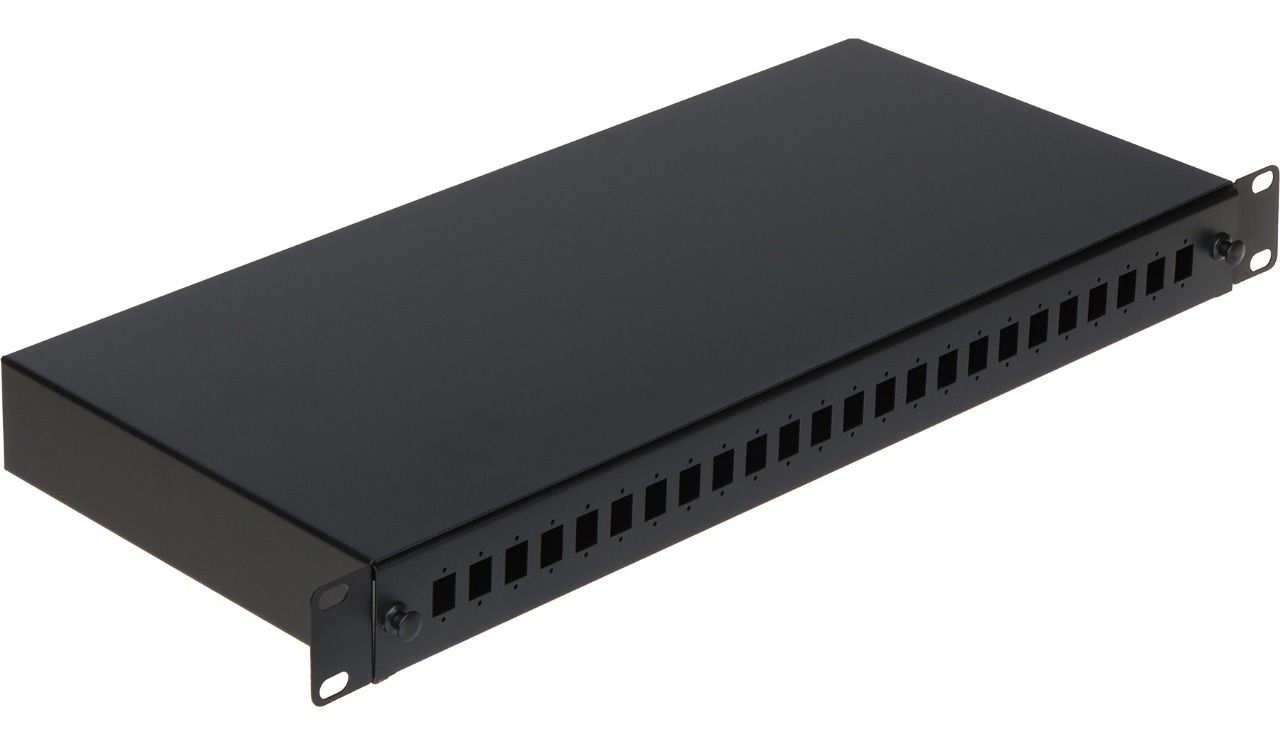

Adapter Panel: The front panel is punched to fit 12 Duplex LC adapters (often referred to as DLC or SC-type footprint Duplex LC). It can also sometimes accommodate SC Simplex adapters (24 total), but the specific model dictates Duplex LC.

Material: Constructed from cold-rolled steel with an electrostatic spraying finish for durability and corrosion resistance (indoor rated).

Function: Integrates the functions of cable fixation, cable termination, fiber splicing, and patch cord connection within a single rack-mounted unit.

Splice Tray: Includes at least one splice tray capable of holding up to 24 fiber fusion splices.

Unloaded Configuration: Supplied as an empty chassis (patch panel and splice tray included), giving the installer the flexibility to use their preferred adapters, pigtails, and splice sleeves.
